Inline Dilution & Autocalibration Systems

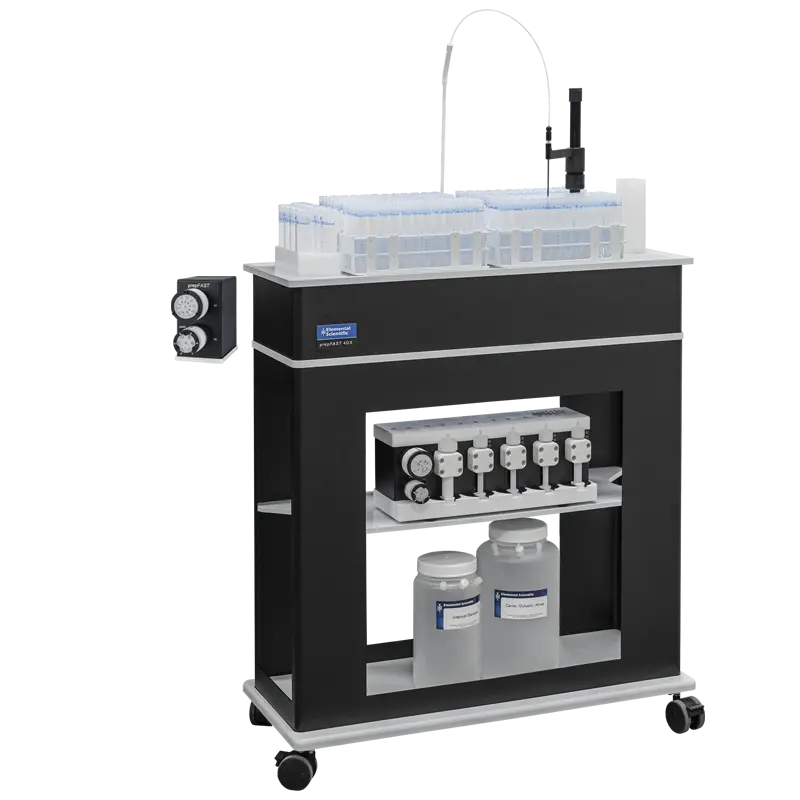

prepFAST M5X Model

The prepFAST M5X for ICP and ICPMS is a fully integrated autodilution and autocalibration system that improves precision and detection limits while significantly increasing sample throughput, delivering additional dilution factors of 1 to 40,000x via dual-stage dilution.

Syringe Sample Loading and Extended Dilution Range

The prepFAST M5X provides both precision syringe loading of samples and high-throughput vacuum sample loading. Syringe loading is recommended when sample volumes are limited (0.1 - 3 mL) or when increased sample viscosity becomes an issue. This can include organic solvents, viscous brines or biological sample. Vacuum loading can be used when sample volumes are larger or when sample viscosity is not an issue.

The prepFAST M5X system is available in the following models:

P-Series FAST: 2DX, 4DX, 8DX, and 14DX
SampleSense FAST: 2DXCi, 4DXCi, 8DXCi, 14DXCi
prepFAST M5X
  • Dual loop dilution valve for extended dilution range of 1-40,000x
  • Vacuum sample loading for high throughput
    • Automated loading SampleSense FAST
    • High performance, economical P-Series FAST
  • Overrange dilution
  • Enhanced with precision syringe sample loading for micro or viscous samples
  • Autocalibration & Autodilution
  • Enhanced washout and higher throughput
  • Syringe-driven internal standard addition

prepFAST M5X Features Diagram

Features Diagram
  • Syringe loading supports loading of micro samples and higher viscosity samples
  • Dual dilution loop valve for extended dilution range of 1 to 40,000x
  • Reduces laboratory reagent waste
  • Automatic syringe-driven internal standard addition
  • Frees up laboratory staff for other tasks
    • Eliminates manual preparation of calibration standards
    • Automates all required sample dilutions
    • Reduces required training and experience for operators
  • Excellent return on investment
  • Customized sample loading with P-Series FAST and DX autosampler
  • Fully automated vacuum sample loading with SampleSense FAST
    • No required method timings
    • Actively monitors and reports sample loading issues
    • Automatically adjusts to different sample viscosities
    • DXCi autosampler with autocorrecting arm position when probe is accidentally obstructed

SampleSense prepFAST Autodilution Advantages

Innovative Sample Loading

Innovative Sample Loading

SampleSense accounts for viscosity and automatically adjusts timing. One method for multiple sample types.

SampleSense prepFAST Valve Enclosure

Time Savings

Operator time for sample introduction method development is eliminated. Just run samples.

Sample Savings

Sample Savings

The sample is injected at precisely the right time. Every time. Even for small samples.

Error Notification

Error Notification

Incomplete sample loading or bubbles in the sample are detected and logged.

prepFAST M5X in Action

P-Series prepFAST Operation

prepFAST M5 Autodilution Video


prepFAST M5X Specifications

  • prepFAST M5X models range from 2 rack capacity up to the ultra-high capacity 14 rack model
  • Integrated with a mobile station, optionally fitted with enclosure to protect samples from airborne contamination
  • SampleSense prepFAST M5X systems equipped with the DXCi Autocorrecting Autosampler
  • The P-Series prepFAST M5X systems come with the DX Autosampler
prepFAST Specifications

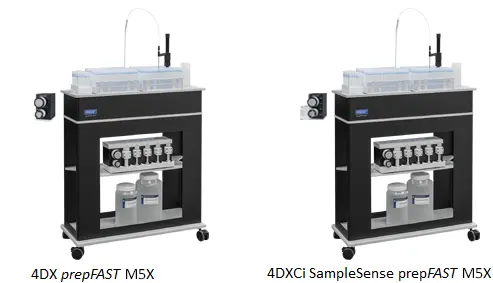

prepFAST M5X Models

prepFAST M5X Models

More Results. Less Hassle. prepFAST

Contact us for information on our prepFAST Autocalibration System!
