Automated Sample Tracking

sampleTRAX S – Intelligent Barcode Tracking and ICPMS Analysis

At the touch of a button, sampleTRAX S automatically identifies samples, imports the required analytical protocol(s), performs each analysis, reports results, and tracks sample status throughout the entire process.

Features & Benefits

  • Barcode Reading: Each sample’s barcode scan automatically triggers specific analytical protocols. Multiple samples of the same type can be automatically grouped together by calibration, dilution or sequence.
  • Predefined Analytical Protocols: Minimize variability and user error across multiple instruments
  • PPT/PPQ Autocalibration: Built around the industry-leading prepFAST S, with syringe-driven sample handling for sub-ppt detection limits
  • Unified Measurement and Reporting: A central database standardizes chemical analysis across multiple instruments, ensuring inter-lab comparability
  • Available Automatic Bottle Uncapper: Fluorocapper safely removes and replaces sample lids at the time of analysis, minimizing exposure to hazardous chemicals while maintaining sample integrity

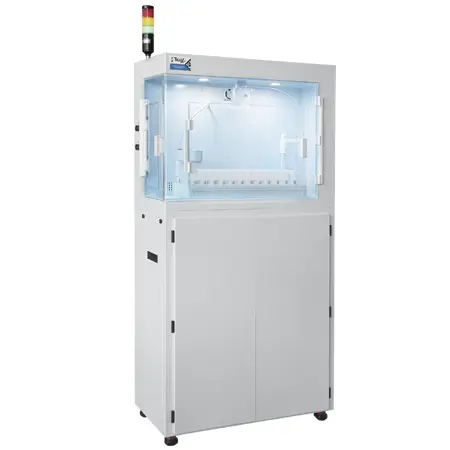

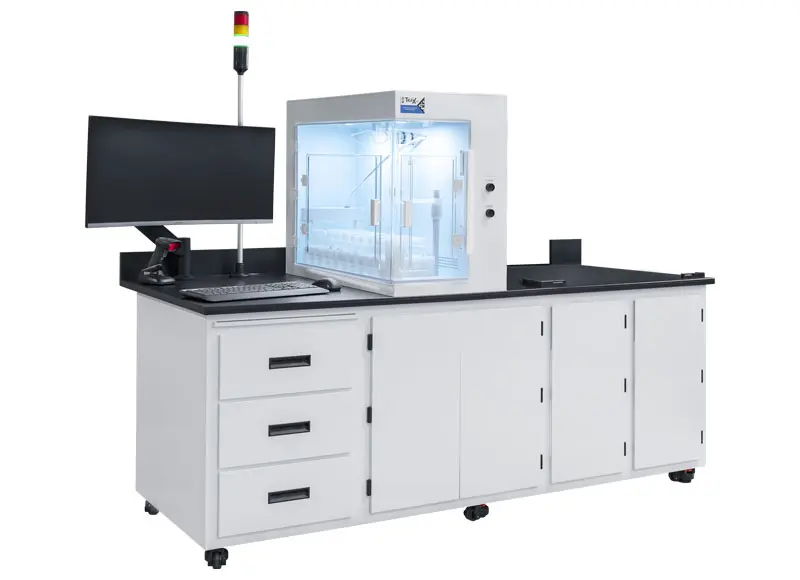

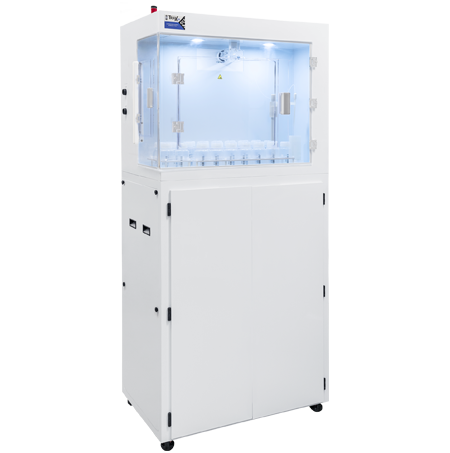

sampleTRAX S Analytical Station

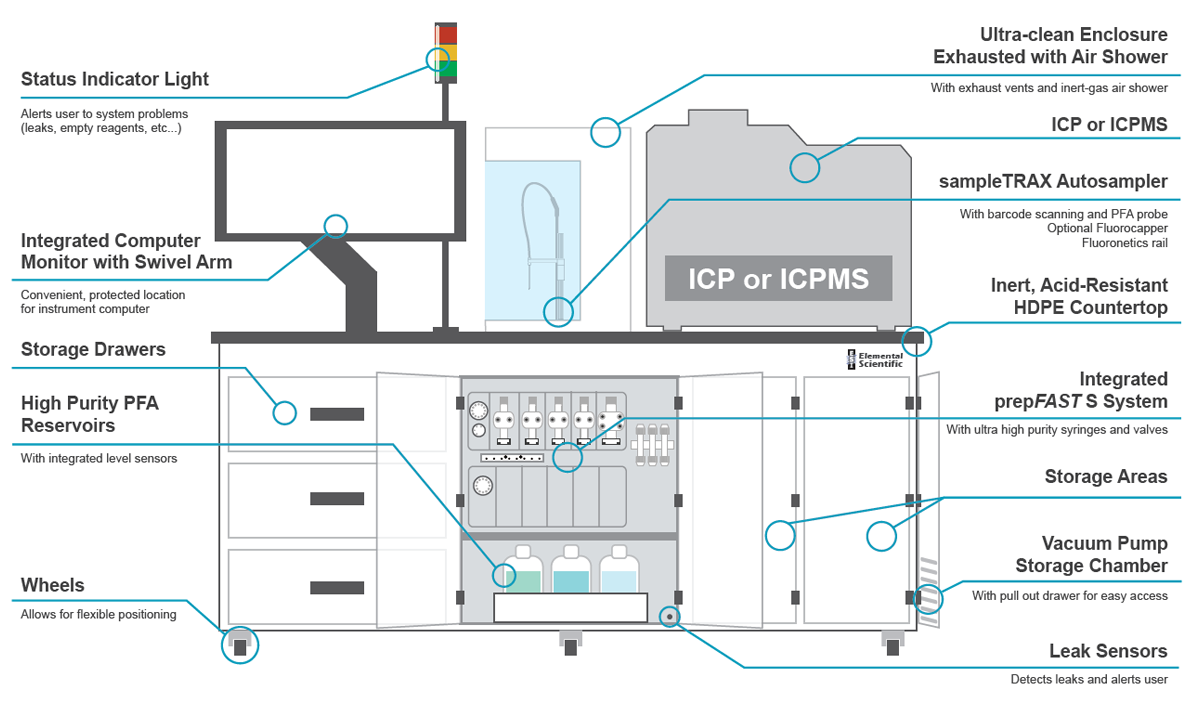

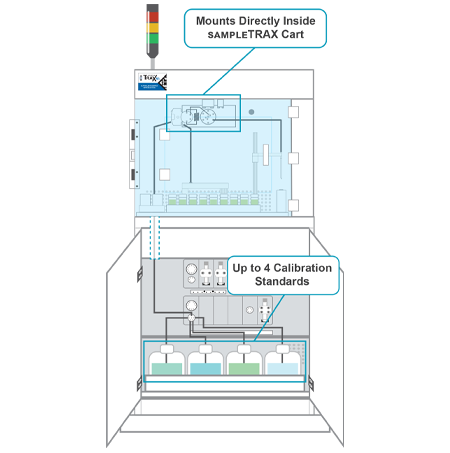

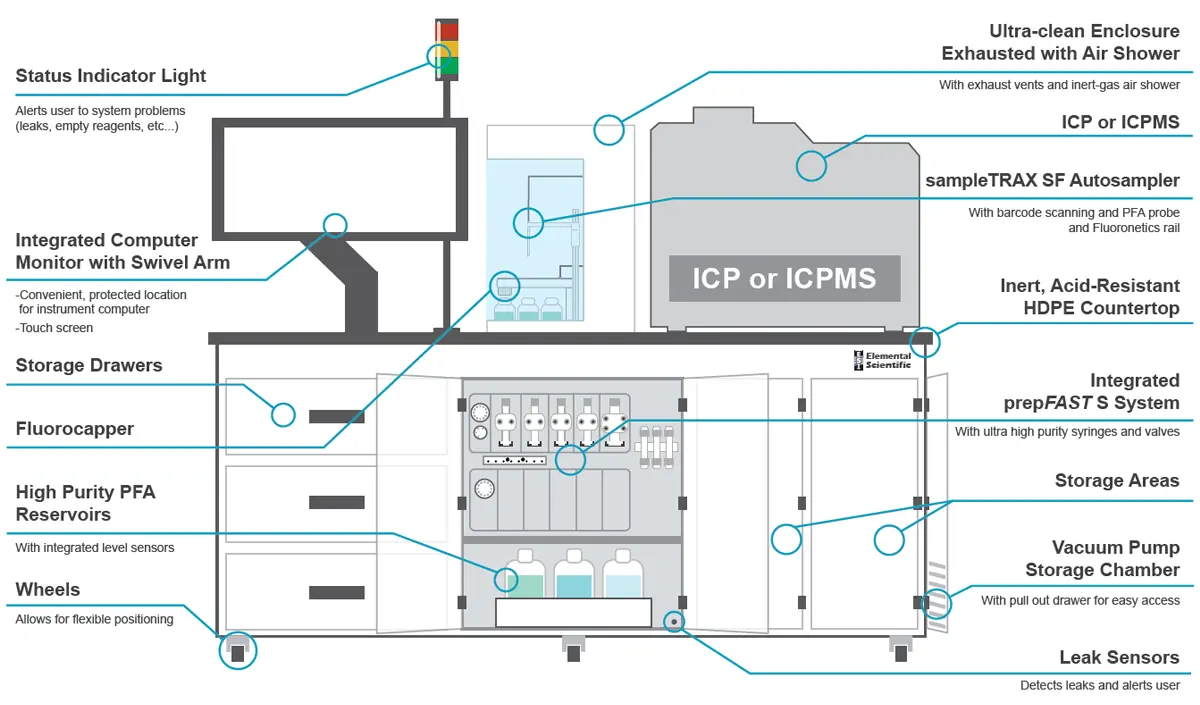

Featured Diagram for sampleTRAX S

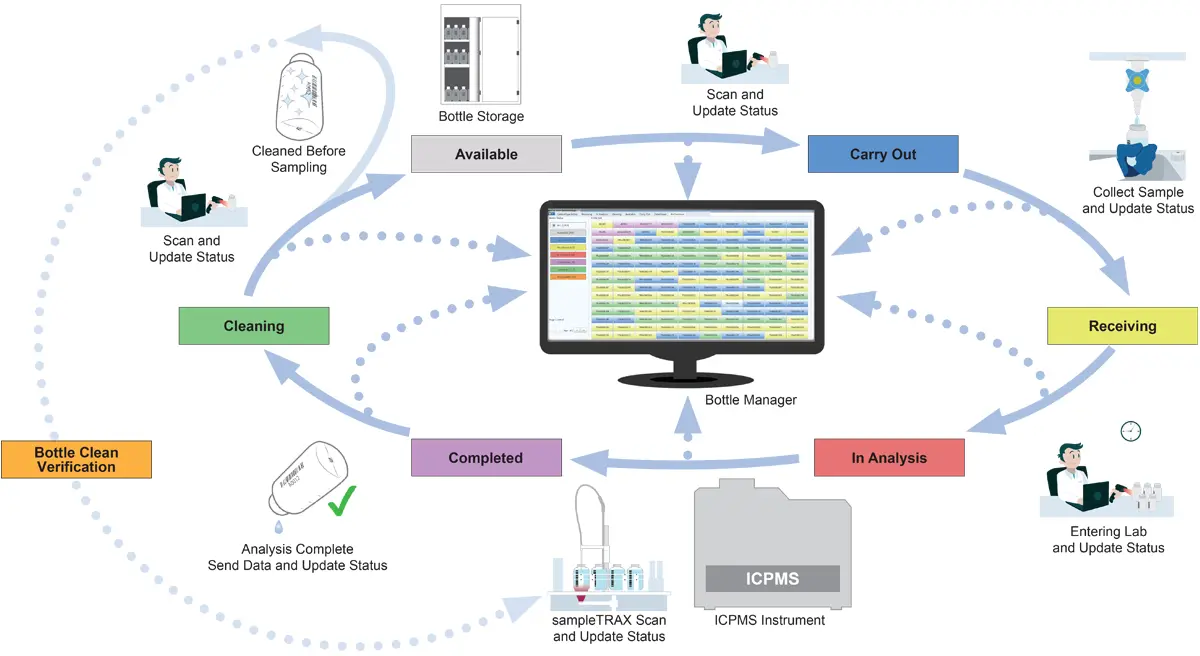

Bottle Tracking

Bottle Tracking Cycle

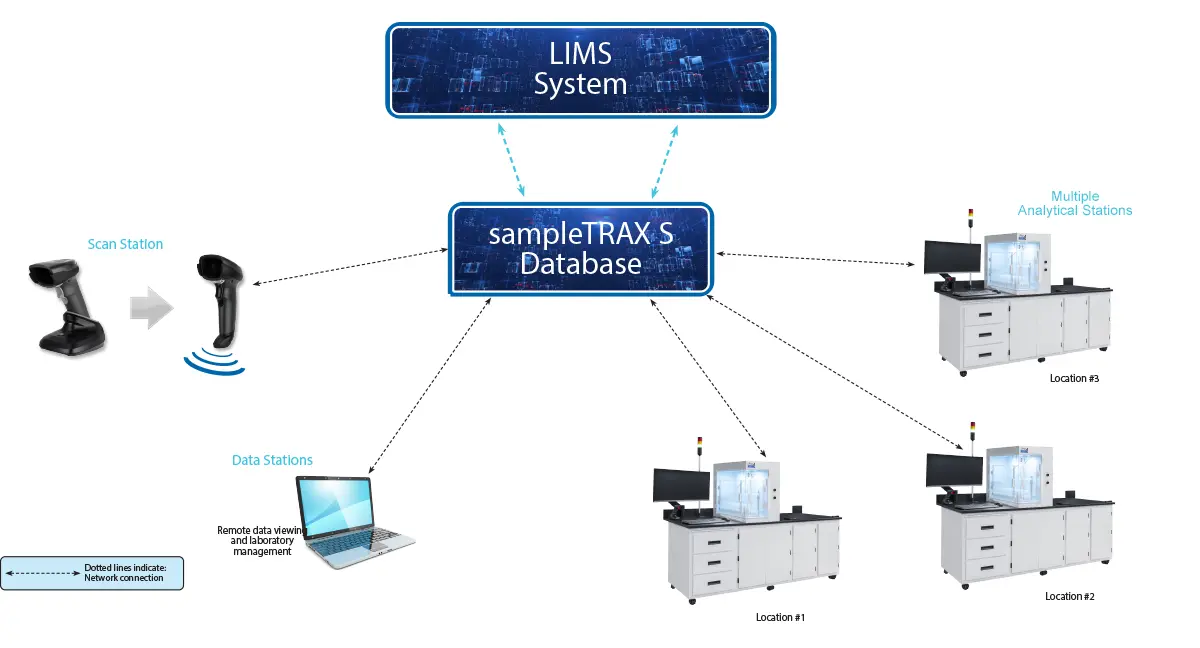

Networking

SampleTRAX Networking

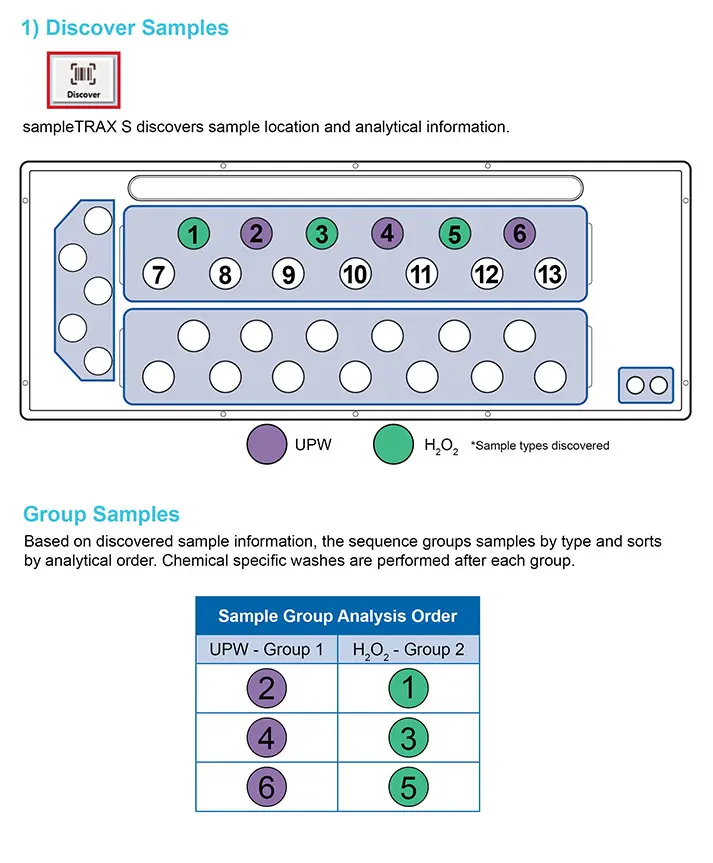

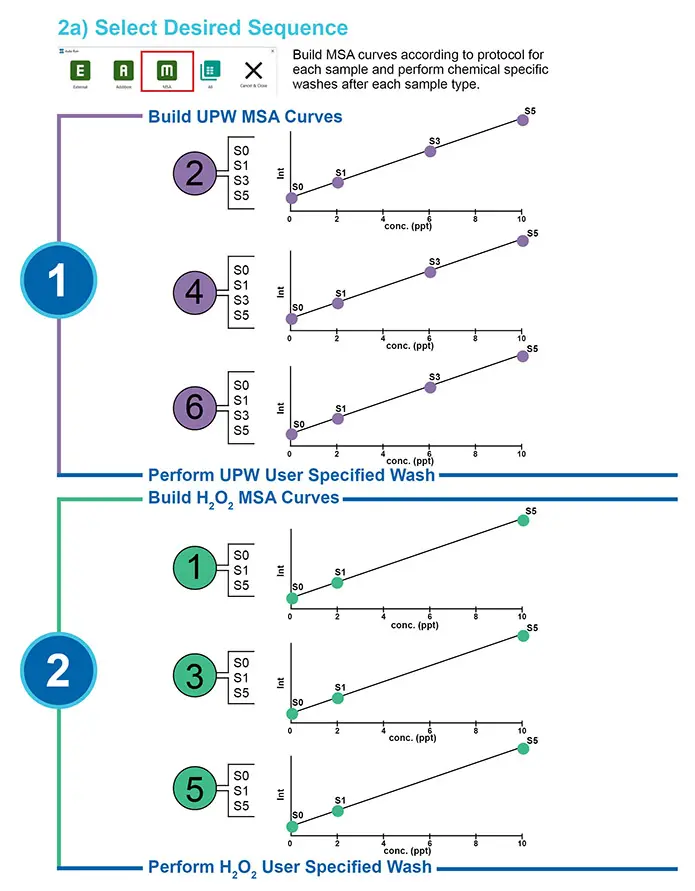

Discovers Samples & Automatically Creates Sequence in the Correct Order for Analysis

Discovers Samples & Automatically Creates Sequence in the Correct Order for Analysis
Discovers Samples & Automatically Creates Sequence in the Correct Order for Analysis

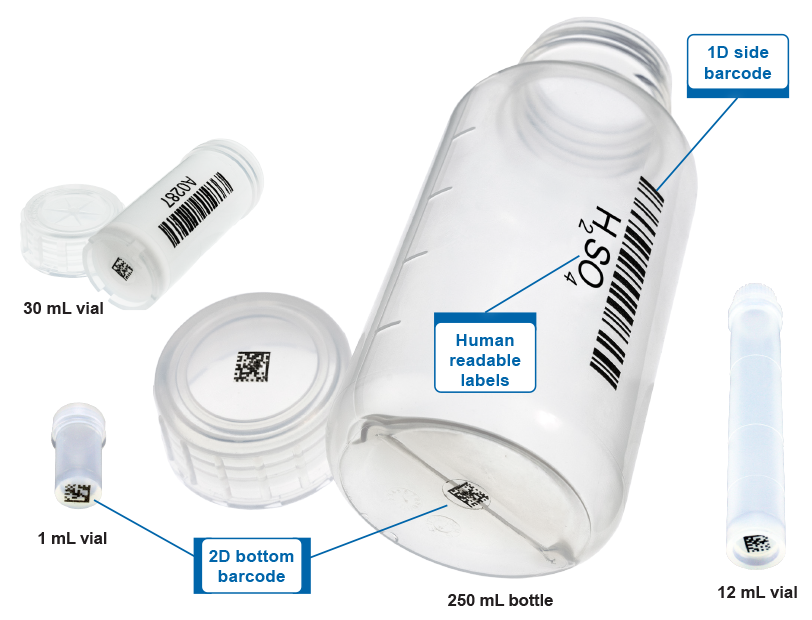

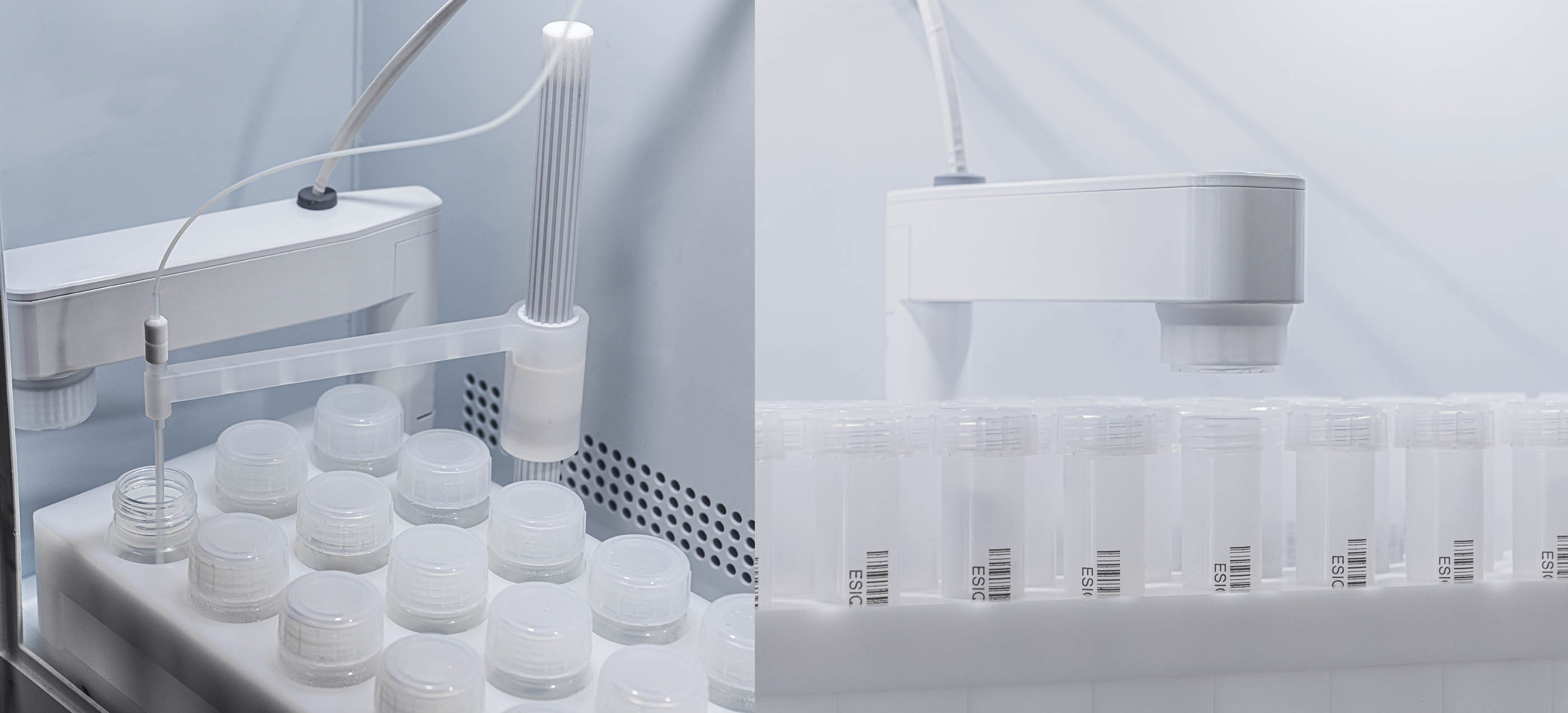

1D and 2D Barcodes Permanently Marked Into Inert PFA

Benefits

  • Chemically inert barcodes
  • Non-contamination markings into acid-resistant PFA
  • Reusable
  • 2D barcoded bottles are compatible with sampleTRAX S scanning automation systems
  • Track bottle position and sample identity
  • Precleaned

Types

  • Bottles
    - 2D bottom barcoded
    - 1D side barcoded
  • Caps - Available with 2D barcodes
  • Any type of bottle can be custom labeled

A Variety of Precleaned Barcoded Bottles, Vials & Caps are Available

1D and 2D Barcodes Permanently Marked Into Inert PFA

Options

The sampleTRAX S can be customized with several options to meet specialized sample analysis requirements and automate tasks that normally require manual intervention. These options are listed below.

SampleTRAX S Anayltical Station Options

SampleTRAX S Analytical Station Upgrades


Fluorocapper

The Fluorocapper option performs automatic bottle or vial uncapping. It safely removes and replaces the sample lids at the time of analysis, minimizing exposure to hazardous chemicals while maintaining sample integrity. Models available to uncap 250, 100, and 60 mL containers.

Fluorocapper shown for 250 mL and 60 mL sample containers
Fluorocapper shown for 250 & 60 mL sample containers

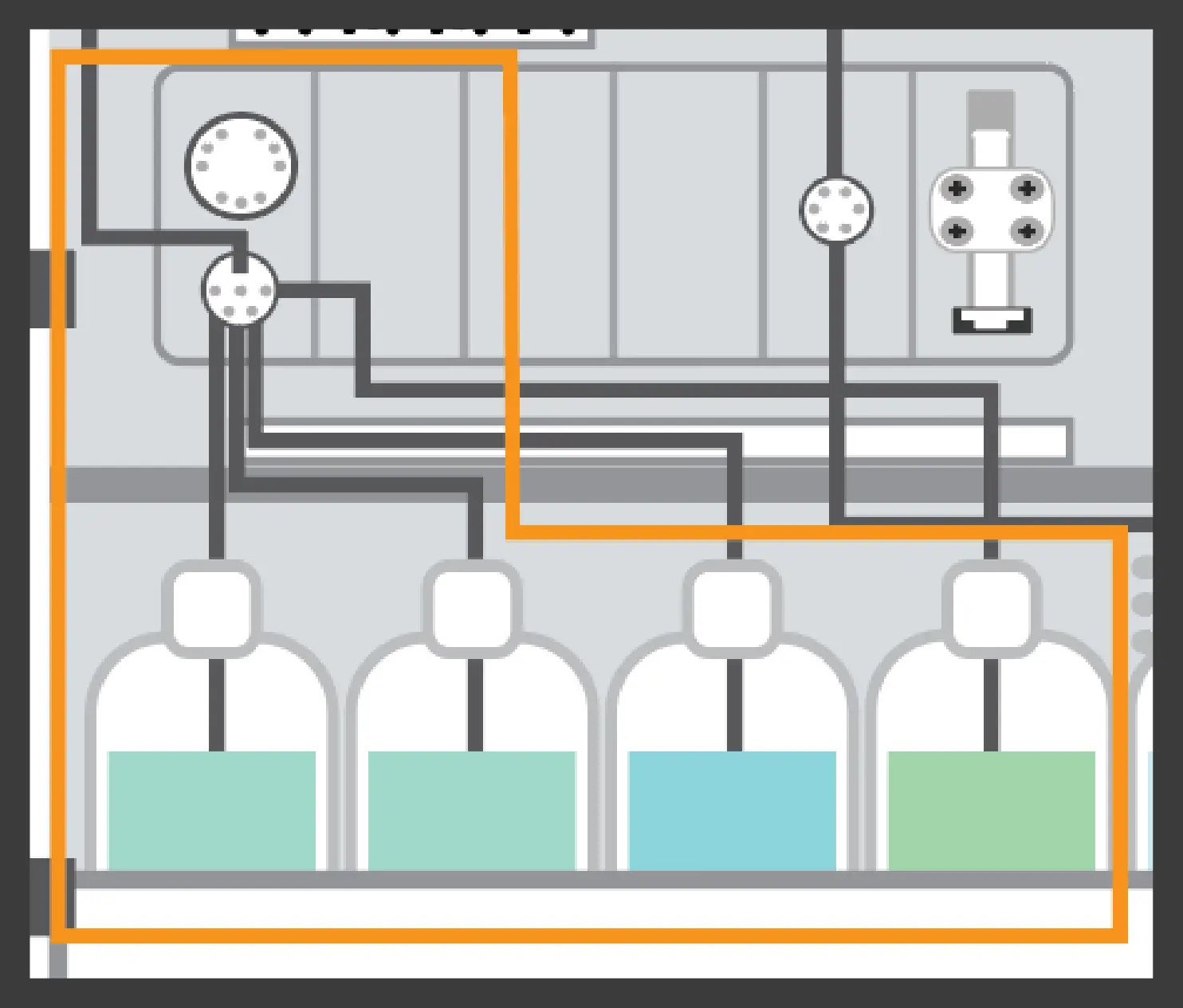

Multi-Standard Selector

The Multi-Standard Selector option provides quick selection between four different calibration sources without the need to reprime the system, including:

  • Multiple matrix-matched calibrations
  • Extended range calibrations from multiple stock bottles
  • Multi-elemental calibrations from stock with different matrixes, elements, & concentrations

Multi-Standard Selector

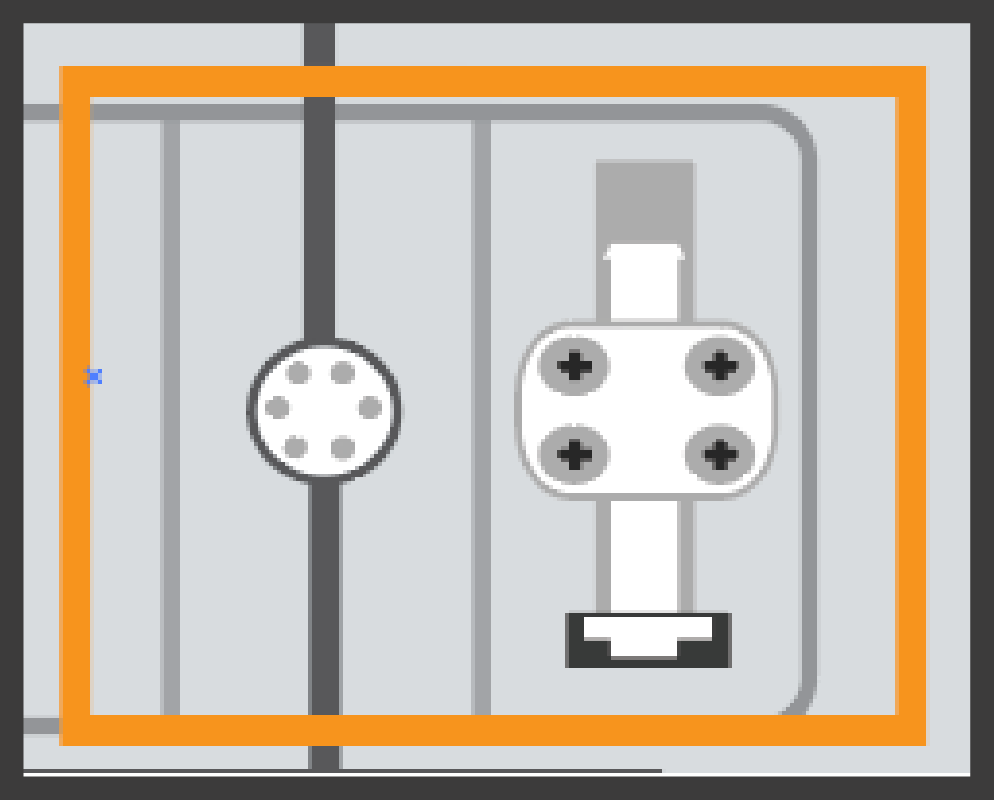

Syringe Pumped Rinse Station

The Syringe Pumped Rinse Station option for sampleTRAX replaces the standard flowing UPW rinse with a desired chemical.

Syringe Pumped Rinse Station

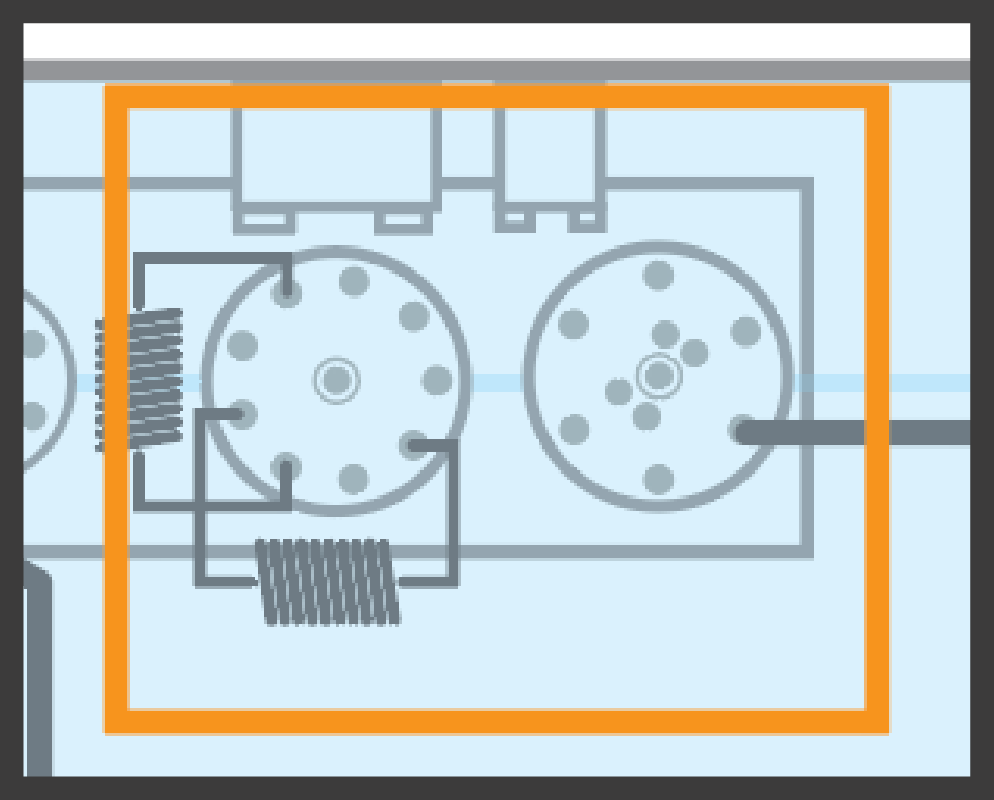

Dual Transfer Lines

This sampleTRAX option provides two discrete sample flow paths. This is ideal for running incompatible chemicals in the same analysis procedure, and reduces the opportunity for contamination.

Dual Transfer Lines

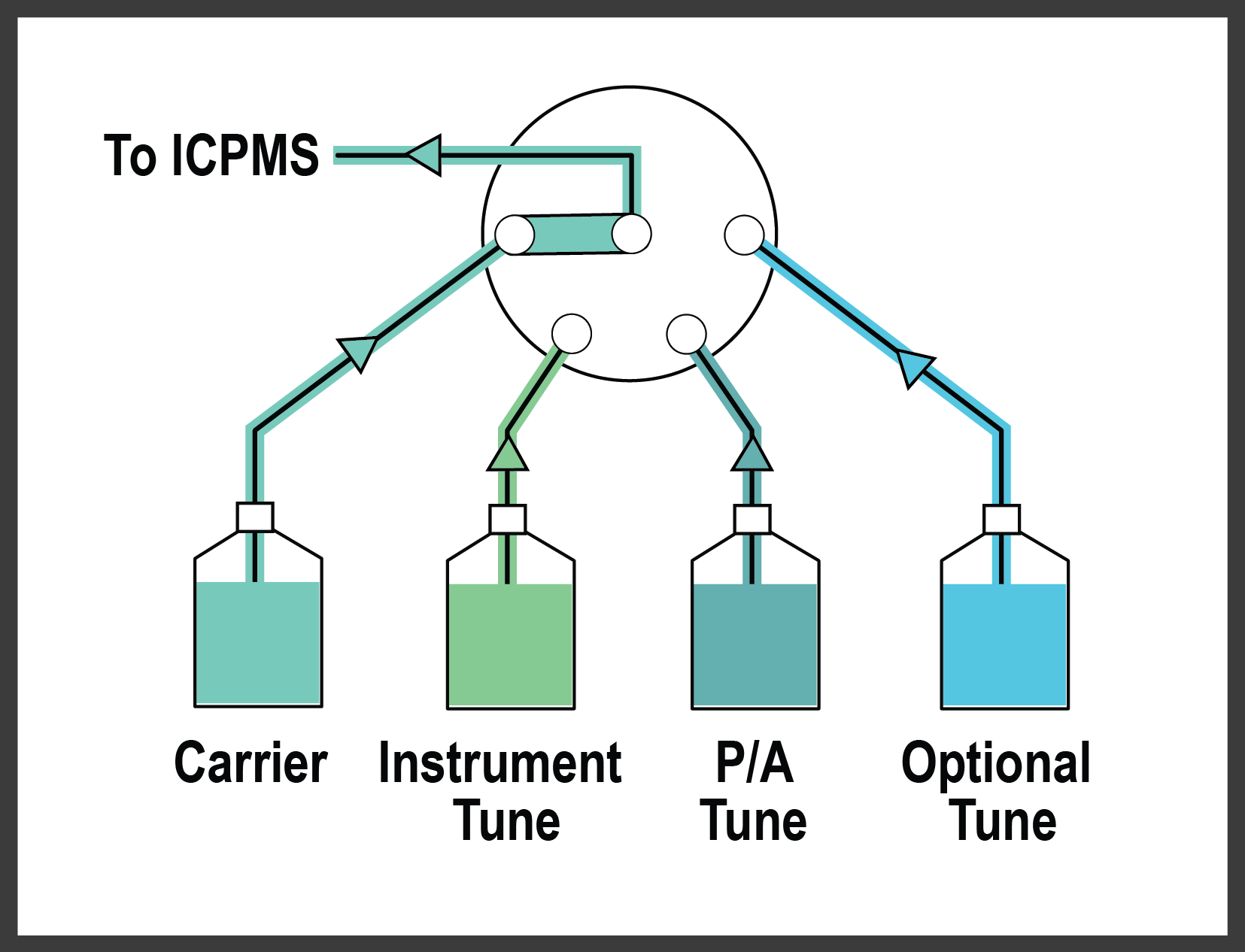

Autotuning Selection

The Autotuning Selection option delivers fully automated selection of instrument tuning solutions from four supply bottles. This allows for instrument tuning procedures to be performed automatically on demand, without requiring operator intervention.

Autotuning Selection

Product Brochure

sampleTRAX S Brochure

Specifications & Minicatalog

sampleTRAX S.pdf Barcoded Labware and Racks
