Autodilution & Autocalibration Systems

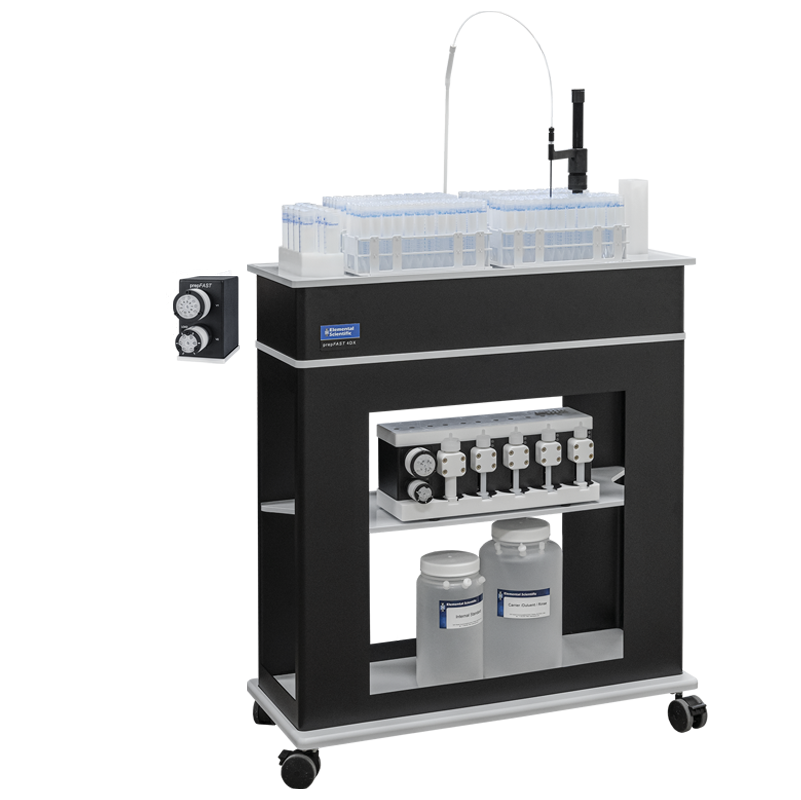

prepFAST M5 Model

The prepFAST M5 for ICP and ICPMS is a fully integrated autodilution and autocalibration system that improves precision and detection limits while significantly increasing sample throughput.

Automated Sample Preparation System with Syringe Sample Loading

The prepFAST M5 has an additional syringe for sample loading allowing for precise and accurate loading of micro volume and/or viscous samples. The 5th syringe also provide additional features such as premixing samples and enhanced washout for lower blanks. Combined with the autocalibration, inline sample dilution and automatic overange dilution the capabilities of prepFAST, the prepFAST M5 is an advanced laboratory automation system.

The precise (<±0.05%) and accurate (<±0.2%) S500V2 syringe pump provides smooth and balanced delivery of solutions over a wide range of flow rates (1 to 40,000 μL/min) to ensure rapid reliable inline dilutions.

prepFAST M5
  • Autocalibration & Autodilution
  • Vacuum sample loading for high throughput
    • Automated loading SampleSense FAST
    • High performance, economical P-Series FAST
  • Overrange dilution
  • Enhanced washout and higher throughput
  • Syringe-driven internal standard addition
  • Dilution range 1-400x

prepFAST M5 Features Diagram

Features Diagram
  • Reduces laboratory reagent waste
  • Automatic syringe-driven internal standard addition
  • Excellent return on investment
  • Customized sample loading with P-Series FAST and DX autosampler
  • Frees up laboratory staff for other tasks
    • Eliminates manual preparation of calibration standards
    • Automates all required sample dilutions
    • Reduces required training and experience for operators
  • Syringe loading supports loading of microsamples and higher viscosity samples
  • Fully automated vacuum sample loading with SampleSense FAST
    • No required method timings
    • Actively monitors and reports sample loading issues
    • Automatically adjusts to different sample viscosities
    • DXCi autosampler with autocorrecting arm position when probe is accidentally obstructed

SampleSense prepFAST Autodilution Advantages

Innovative Sample Loading

Innovative Sample Loading

SampleSense accounts for viscosity and automatically adjusts timing. One method for multiple sample types.

SampleSense prepFAST Valve Enclosure

Time Savings

Operator time for sample introduction method development is eliminated. Just run samples.

Sample Savings

Sample Savings

The sample is injected at precisely the right time. Every time. Even for small samples.

Error Notification

Error Notification

Incomplete sample loading or bubbles in the sample are detected and logged.

prepFAST M5 in Action

P-Series prepFAST Operation

prepFAST M5 Autodilution Video

prepFAST M5 Specifications

  • prepFAST M5 models range from 2 rack capacity up to the ultra-high capacity 14 rack model
  • Integrated with a mobile station, optionally fitted with enclosure to protect samples from airborne contamination
  • SampleSense prepFAST M5 systems equipped with the DXCi Autocorrecting Autosampler
  • The P-Series prepFAST M5 systems come with the DX Autosampler
prepFAST Specifications

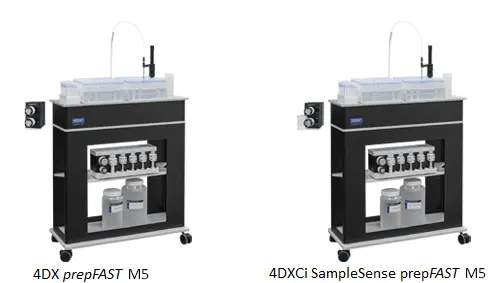

prepFAST M5 Models

prepFAST M5 Models

prepFAST M5 Performance

prepFAST M5 Performance

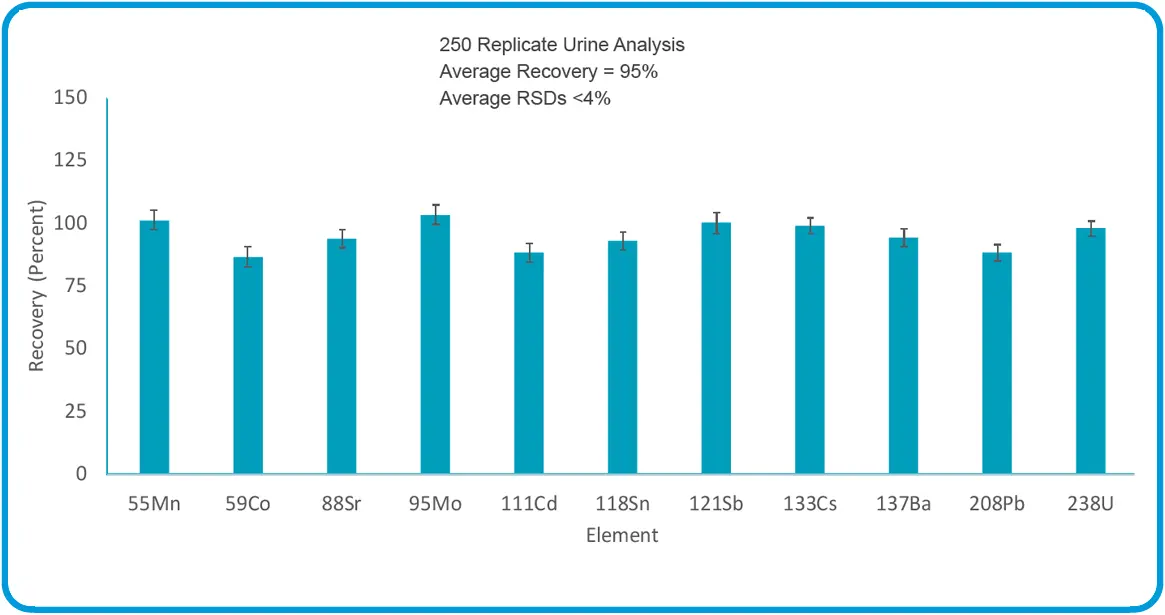

Recovery Using 100μL Urine Samples

prepFAST Performance

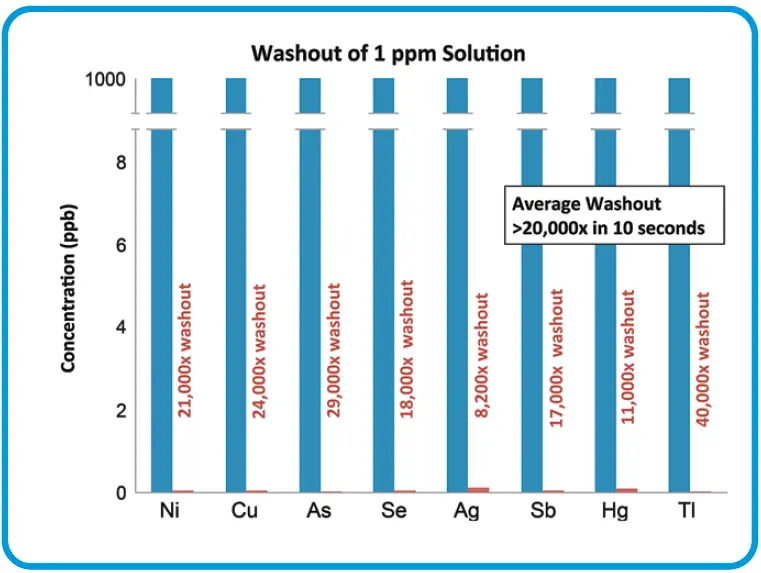

FAST washout even for memory-prone elements

More Results. Less Hassle. prepFAST
