Inline Dilution & Autocalibration Systems

prepFAST Model

The prepFAST inline dilution system fully automates laboratory dilutions and eliminates many manual operator actions during an ICP/ICPMS analysis. Recommended model for labs requiring the highest sample throughput.

Fully Automated Sample Preparation System with Inline Dilution

The prepFAST systems are advanced inline dilution systems designed for ICP/ICPMS. They combine the DX autosampler benefits and the FAST system’s rapid sample throughput with a syringe module to perform precise, accurate inline dilutions of standards and samples.

Samples are vacuum-loaded into a sample loop and automatically mixed with diluent and internal standard using a patented mixing valve. The diluted and mixed sample is introduced to the ICP/ICPMS using FAST technology while the dilution valve is cleaned and prepared for the next sample.

prepFAST
  • Autocalibration & Autodilution
  • Vacuum sample loading
    • Automated loading SampleSense FAST
    • High performance, economical P-Series FAST
  • Overrange dilution
  • Improved washout and higher throughput
  • Syringe-driven internal standard addition
  • Dilution range 1-400x

prepFAST Features Diagram

Features Diagram
  • Reduces laboratory reagent waste
  • Automatic syringe-driven internal standard addition
  • Excellent return on investment
  • Frees up laboratory staff for other tasks
    • Eliminates manual preparation of calibration standards
    • Automates all required sample dilutions
    • Reduces required training and experience for operators
  • Customized sample loading with P-Series FAST and DX autosampler
  • Fully automated sample loading with SampleSense FAST
    • No required method timings
    • Actively monitors and reports sample loading issues
    • Automatically adjusts to different sample viscosities
    • DXCi autosampler with autocorrecting arm position when probe is accidentally obstructed

SampleSense prepFAST Autodilution Advantages

Innovative Sample Loading

Innovative Sample Loading

SampleSense accounts for viscosity and automatically adjusts timing. One method for multiple sample types.

SampleSense prepFAST Valve Enclosure

Time Savings

Operator time for sample introduction method development is eliminated. Just run samples.

Sample Savings

Sample Savings

The sample is injected at precisely the right time. Every time. Even for small samples.

Error Notification

Error Notification

Incomplete sample loading or bubbles in the sample are detected and logged.

prepFAST in Action

SampleSense prepFAST Autodilution Video

SampleSense prep<em>FAST</em> Autodilution Video

P-Series prepFAST Operation

P-Series prepFAST Operation

prepFAST Specifications

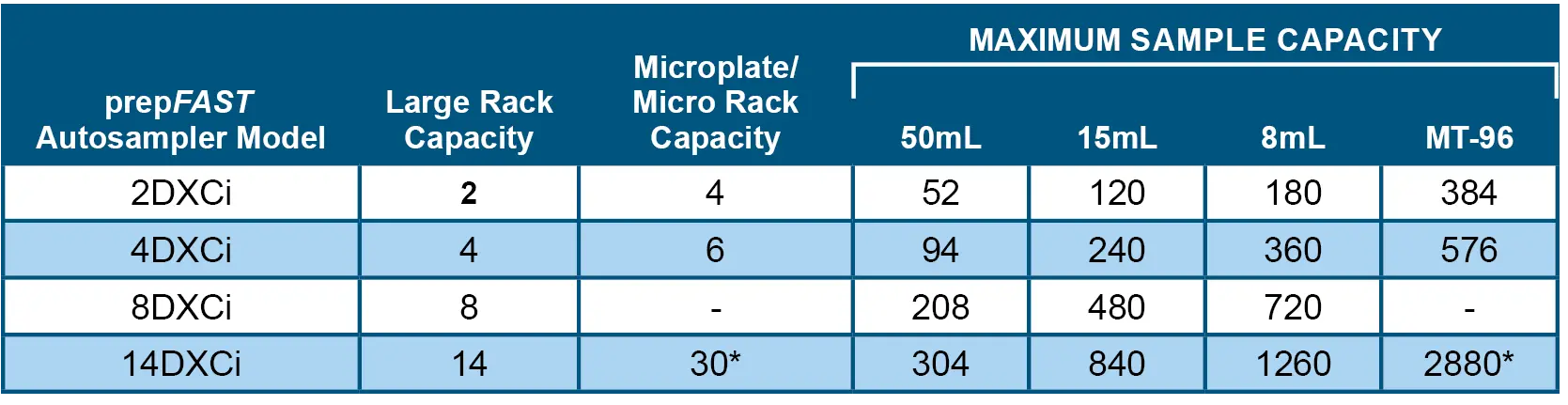

  • prepFAST models range from 2 rack capacity up to the ultra-high capacity 14 rack model
  • Integrated with a mobile station, optionally fitted with enclosure to protect samples from airborne contamination
  • SampleSense prepFAST systems equipped with the DXCi Autocorrecting Autosampler
  • The P-Series prepFAST systems come with the DX Autosampler
prepFAST Specifications

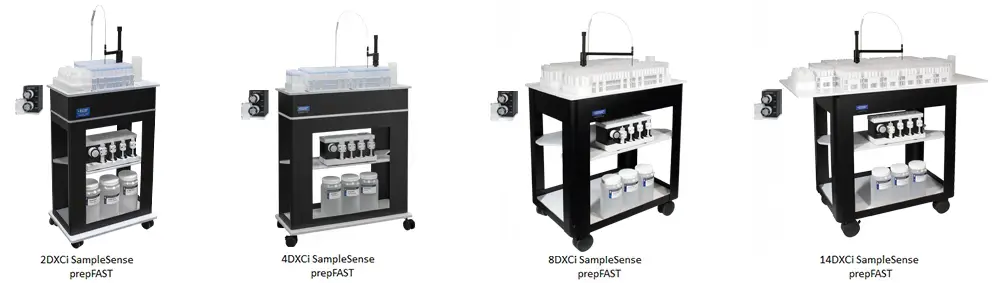

prepFAST Models

prepFAST Models

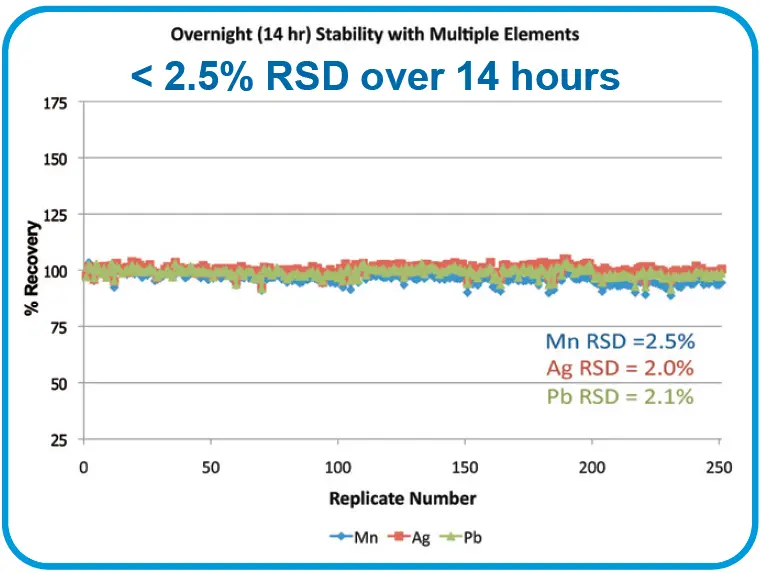

prepFAST Performance

prepFAST Performance

Long-term stability

More Results. Less Hassle. prepFAST
