High-performance Nebulizers for ICP/ICPMS

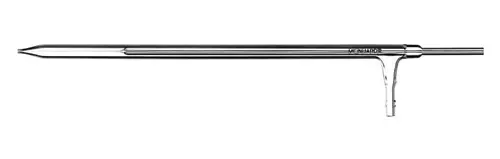

MEINHARD DIHEN Direct Injection Nebulizers

MEINHARD's® Direct Injection High Efficiency Nebulizers (DIHEN) use the HEN nozzle design in a nebulizer which operates within the plasma torch at the base of the plasma. As a result, 100% of the sample is transported to the plasma.

100% Transport Efficiency/Specialty Applications

The DIHEN are designed to operate a lower sample flow (less than 300 µL/min) with a smaller gas cross-section to obtain higher nebulizing gas velocity, smaller droplets, and the most signal from the smallest volume of sample. The carrier backpressure is 90 psi (620 kPa), 120 psi (830 kPa), 150 psi (1030 kPa), or 170 psi (1200 kPa). In order to ensure that maximum gas velocity is obtained, the operator should select the highest gas pressure with which he is comfortable working, or the highest pressure available for his instrumentation. The complement to gas velocity is a reduction in liquid flow to less than 300 µL/min, where <100 µL/min is most commonly used with the MEINHARD DIHEN.

Typically, DIHEN are manufactured in borosilicate glass nebulizers for many routine sample types in ICPMS.
If you are needing the quartz version, please contact us for more information.

To order DIHEN Direct Injection Nebulizers online, click on the name of the nebulizer below (* designates multiple options available).

Part No Description Type / Material
Glass DIHEN (*) MEINHARD DIHEN Glass Nebulizer DIHEN / Glass
Various Fluorocarbon Adapters (for various instruments) Fluorocarbon

Contact us for information on our Industry-leading Nebulizers!
