Autodilution & Autocalibration Systems

prepFAST X Coolants Model

Fully automates the sample preparation and subsequent analysis of engine coolant samples with inline autodilution and autocalibration.

Automated Inline Preparation of Engine Coolants

prepFAST X Coolants is a single-valve sample handing system that fully automates the analysis of highly viscous engine coolant samples, significantly improving sample throughput while also reducing operator labor.

  • Automatically dilutes coolant samples and spikes them with internal standards
  • Automatically calibrates the ICP instrument by inline dilution of a stock standard
  • SampleSense technology optically detects each sample loading, automatically accounting for varying sample viscosities
  • DXCi Autocorrecting Autosampler automatically goes to the correct sample position – even when accidentally obstructed

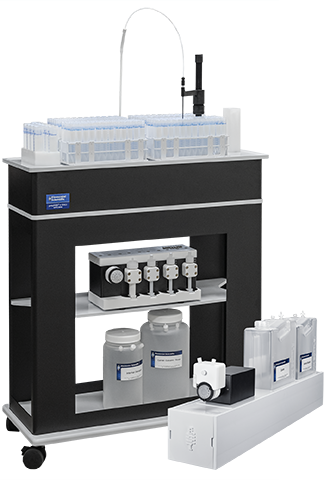

prepFAST X Coolants

prepFAST X Coolants Features Diagram

Features Diagram
  • Sample is quickly vacuum loaded into 1st loop, arrival sensed by SampleSense valve, then diluted into 2nd loop
  • Diluted sample is then delivered to the ICP for analysis, then system washes loops prior to next sample uptake

Sample Load Sensed / Sample Diluted

Sample Load Sensed / Sample Diluted

Sample Analysis & Washout

Sample Analysis & Washout

SampleSense prepFAST X Analytical Cycle

Sample Analysis & Washout
  • New coolant samples autodiluted 10x with prepFAST X and analyzed for 15 elements
  • 250 coolant samples diluted and analyzed in 9 hours and 30 minutes
  • Stability of four elements with the highest concentrations displayed

Detect. Then Inject. prepFAST X Coolants

Contact us for information on our prepFAST X Coolants!
