Sample Introduction Kits

Fluorospray/HF-Resistant Sample Introduction Kits

A fluoropolymer sample introduction kit ideal for semiconductor grade ultrapure chemical sample analysis and HF-containing sample analysis.

Fluorospray is a complete high-purity, high-stability, HF-resistant sample introduction kit for ICPMS. Fluorospray provides ultra-low detection limits and excellent short-term and long-term stability through a novel spray chamber design that improves matrix tolerance while maintaining ultralow backgrounds for all elements.

Features

  • Optimized internal design for high aerosol transport efficiency and low BECs
  • Vertical outlet with dilution gas port to prevent injector droplets for excellent short- and long-term stability
  • One-touch connections for nebulizer, make-up, and dilution/option gas flows
  • Precleaned components for quick installation

Engineered to be:

  • High Stability
  • High Performing
  • High Sensitivity
  • Ultraclean
  • Chemically Resistant

Each kit includes Fluorospray PFA spray chamber with dilution/option gas port and PFA endcap with make-up gas port, injector, PFA injector connector, torch, nebulizer, make-up gas line, dilution gas line & drain line.

Fluorospray was developed for demanding on-line 24/7 monitoring of ultrapure chemicals in semiconductor fabs.

Please note: XX = injector size (ex. - XX will equal 15 when injector size is 1.5 mm)

Part No Description

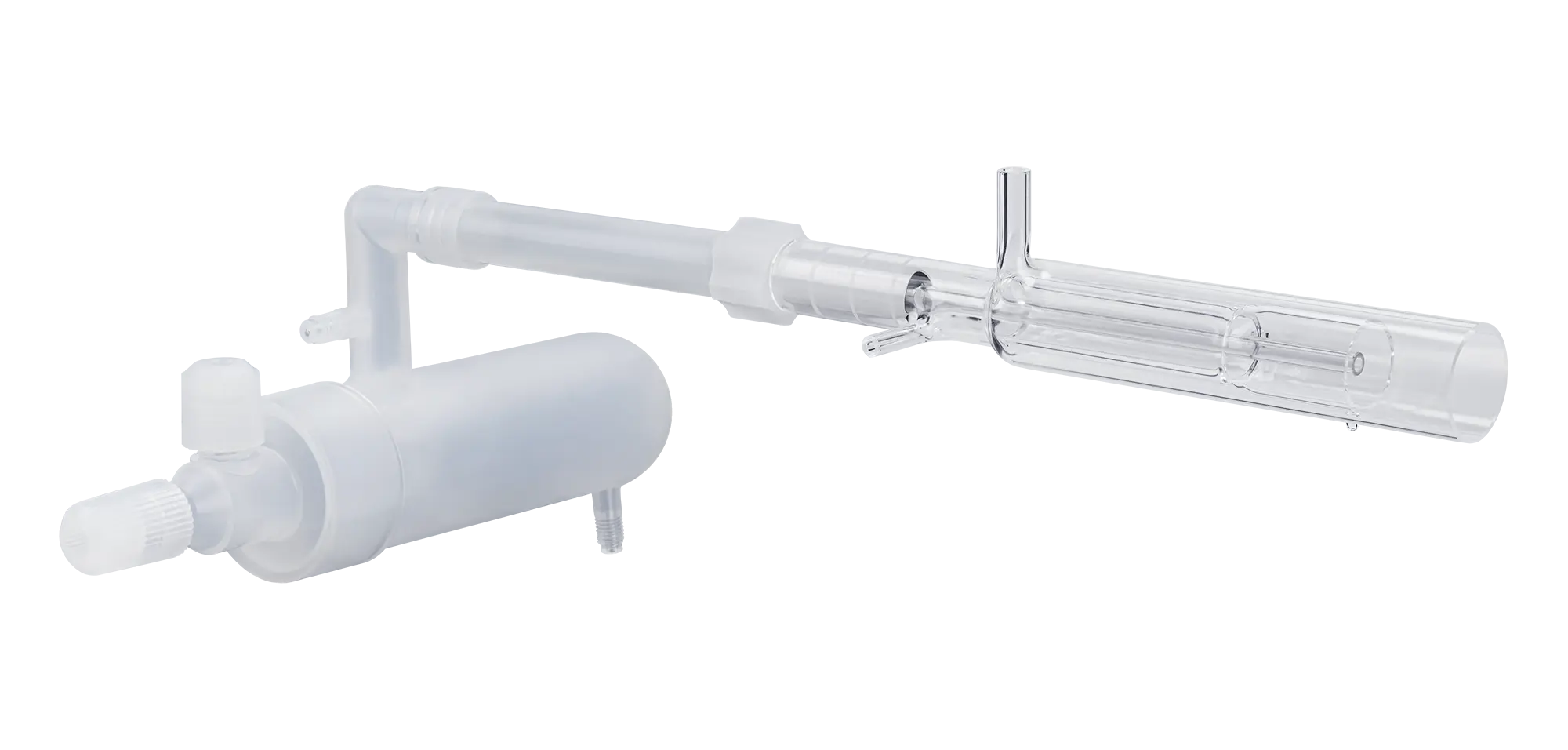

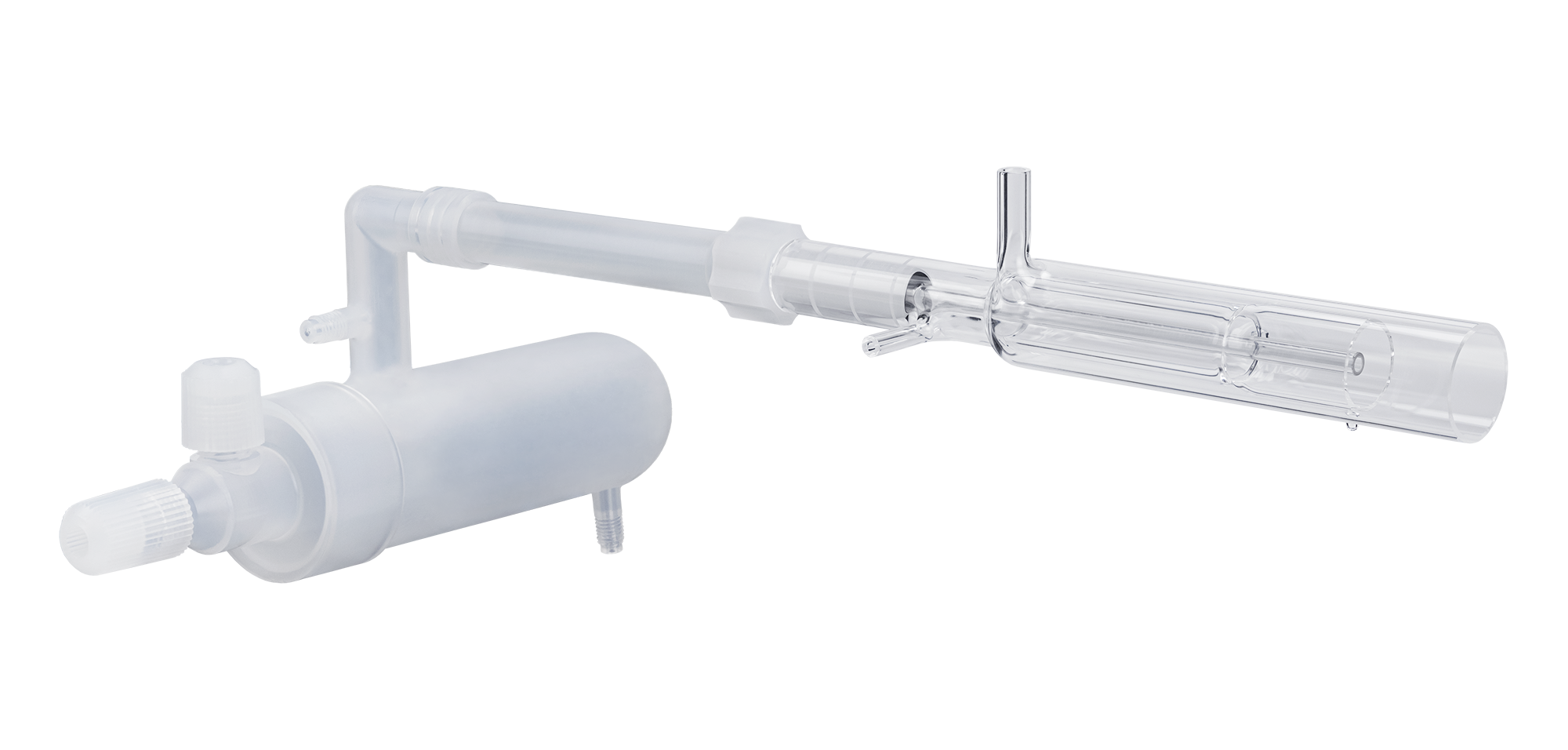

FS-2379-PtXX Semiconductor Fluorospray Kit - Platinum - Agilent 7900/8900
Injector Sizes: 1.0 mm; 1.5 mm; 2.0 mm; 2.5 mm
FS-2379-SXX Geochem Fluorospray Kit - Sapphire - Agilent 7900/8900
Injector Sizes: 1.5 mm; 2.0 mm; 2.5 mm
FS-2365-SXX Geochem Fluorospray Kit - Sapphire - Agilent 5100/5800/5900
Injector Sizes: 1.5 mm; 1.8 mm; 2.4 mm

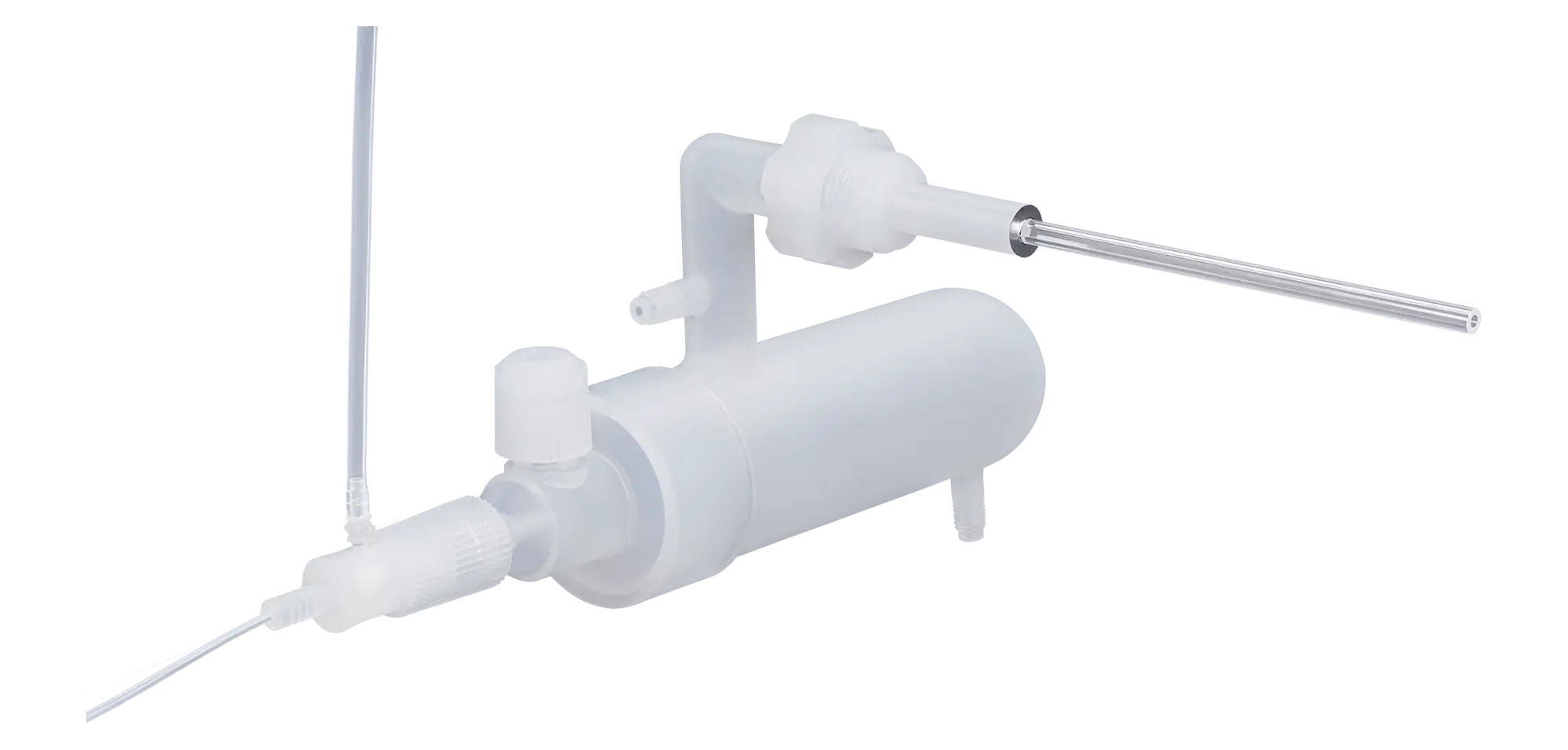

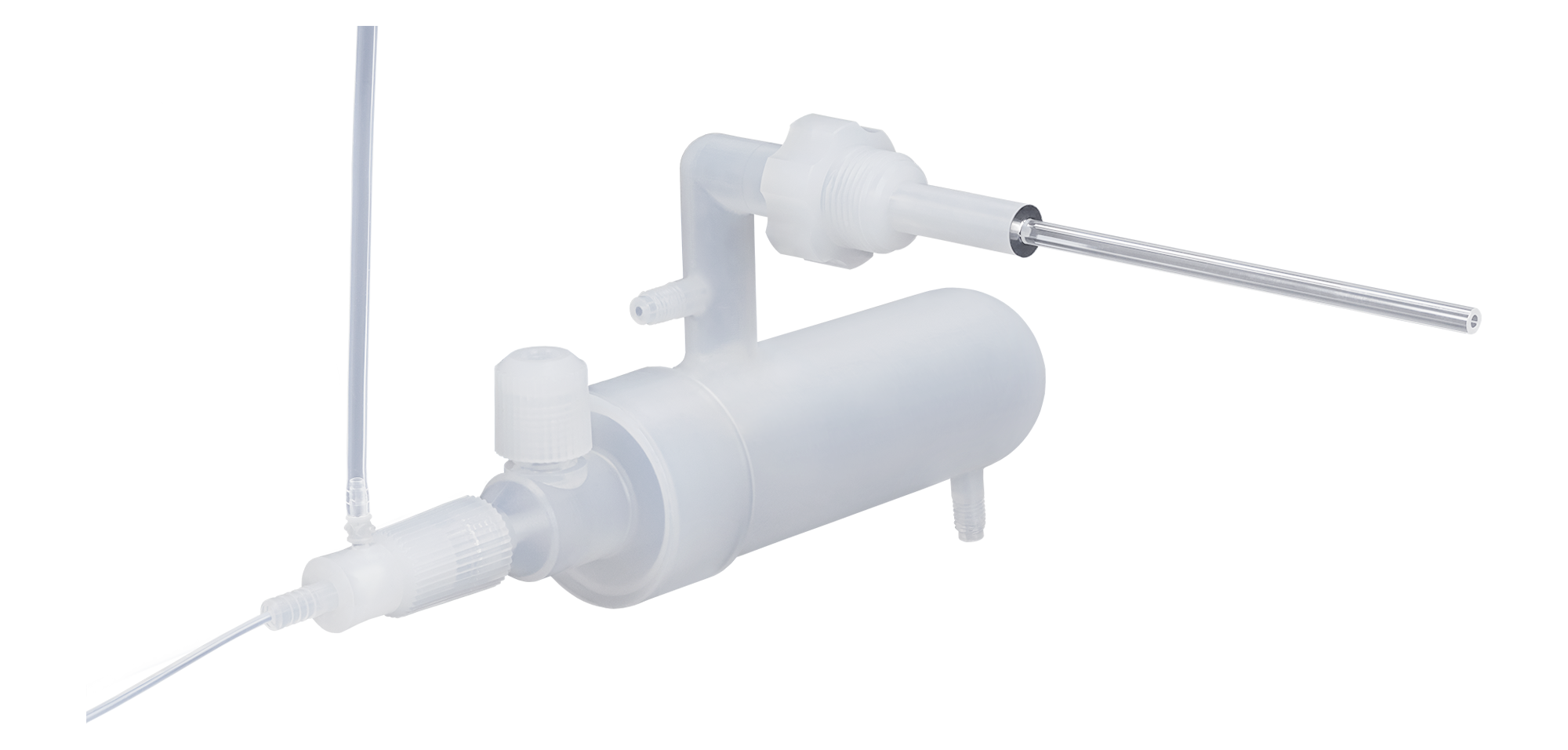

FS-2364-PtXX Semiconductor Fluorospray Kit - Platinum - PE NexION 1000/2000/5000
Injector Sizes: 1.5 mm; 2.0 mm; 2.5 mm
FS-2364-SXX Geochem Fluorospray Kit - Sapphire - PE NexION 1000/2000/5000
Injector Sizes: 1.8 mm; 2.5 mm

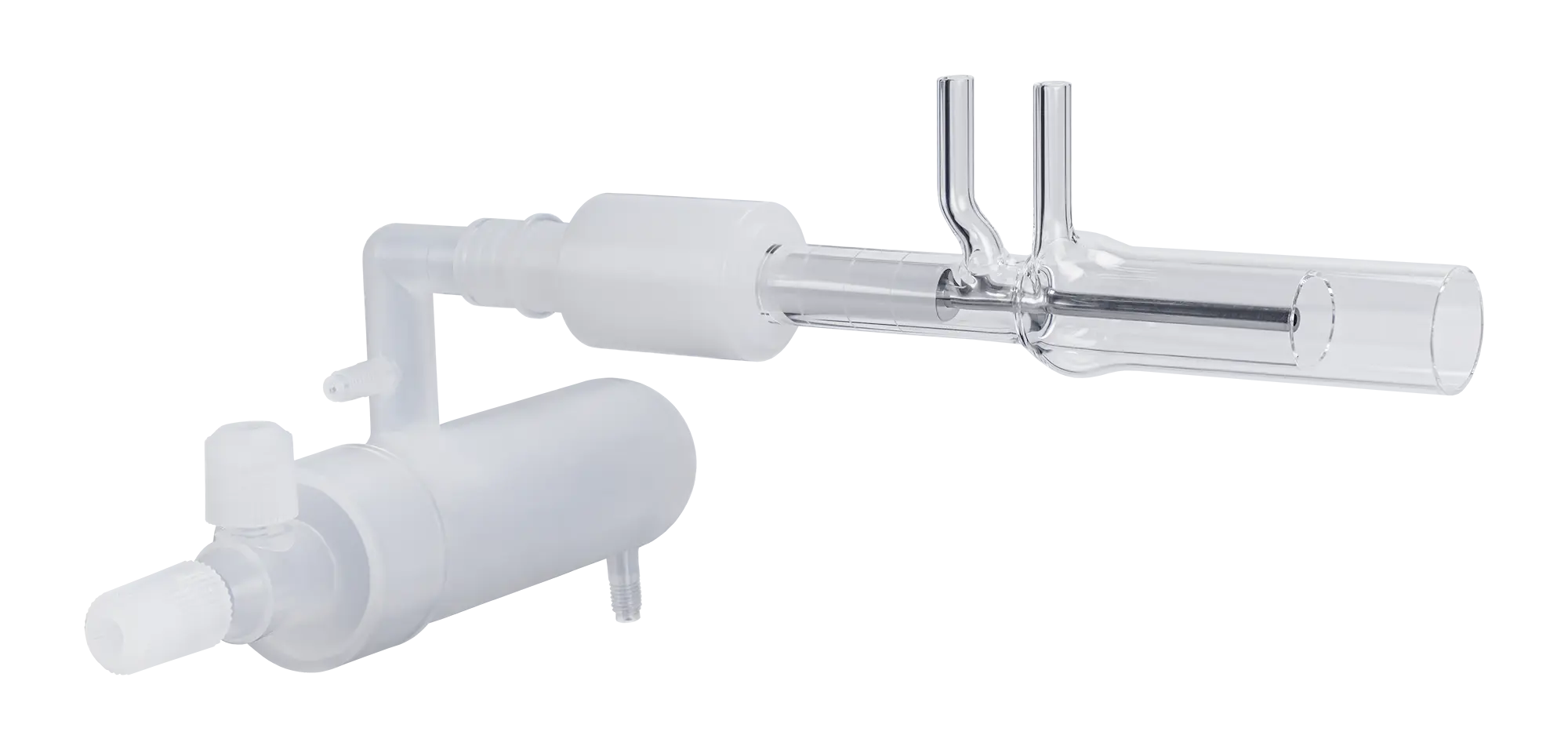

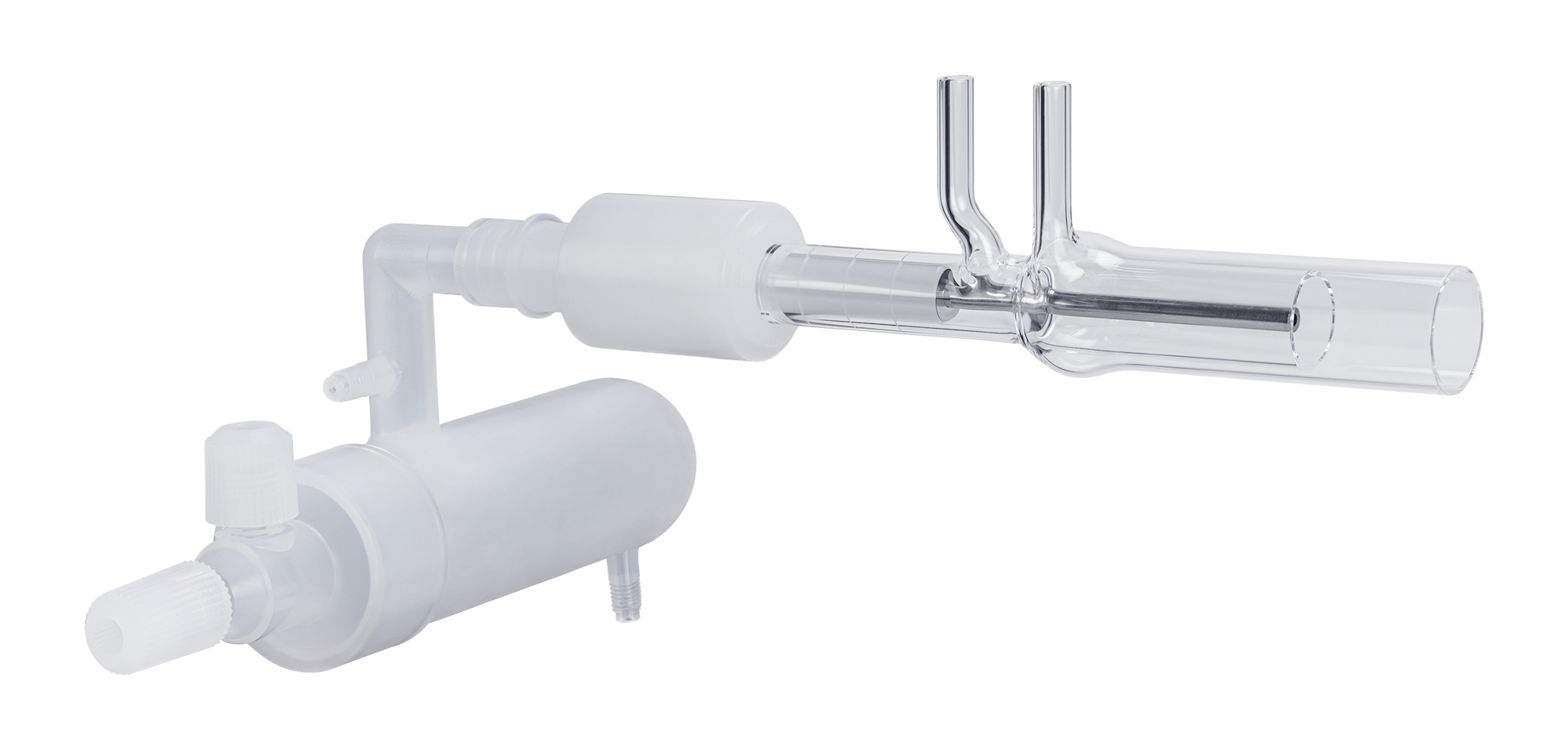

FS-2384-PtXX Semiconductor Fluorospray Kit - Platinum - PE NexION 300/350
Injector Sizes: 1.0 mm; 1.5 mm; 2.0 mm; 2.5 mm
FS-2384-SXX Geochem Fluorospray Kit - Sapphire - PE NexION 300/350
Injector Sizes: 1.8 mm; 2.5 mm

Contact us for information on our Sample Introduction Kits!
