hydrideICP – Compact Hydride Generation Systems

The hydrideICP is a stand-alone hydride generation system that provides ultra-low detection limits for hydride-forming elements such as As, Se, Sb, Pb, and Hg.

hydrideICP Highlights

• Increased sensitivity of up to 100x for hydride-forming elements, delivering low detection limits
• Enhanced stability from MP² micro peristaltic pump that precisely mixes sample and reagents – resulting in stable formation of metal hydrides
• Smallest system of its kind (95 mm W x 118 mm D x 140 mm H)

Features Diagram Benefits How It Works Hydride and Nebulization Resources

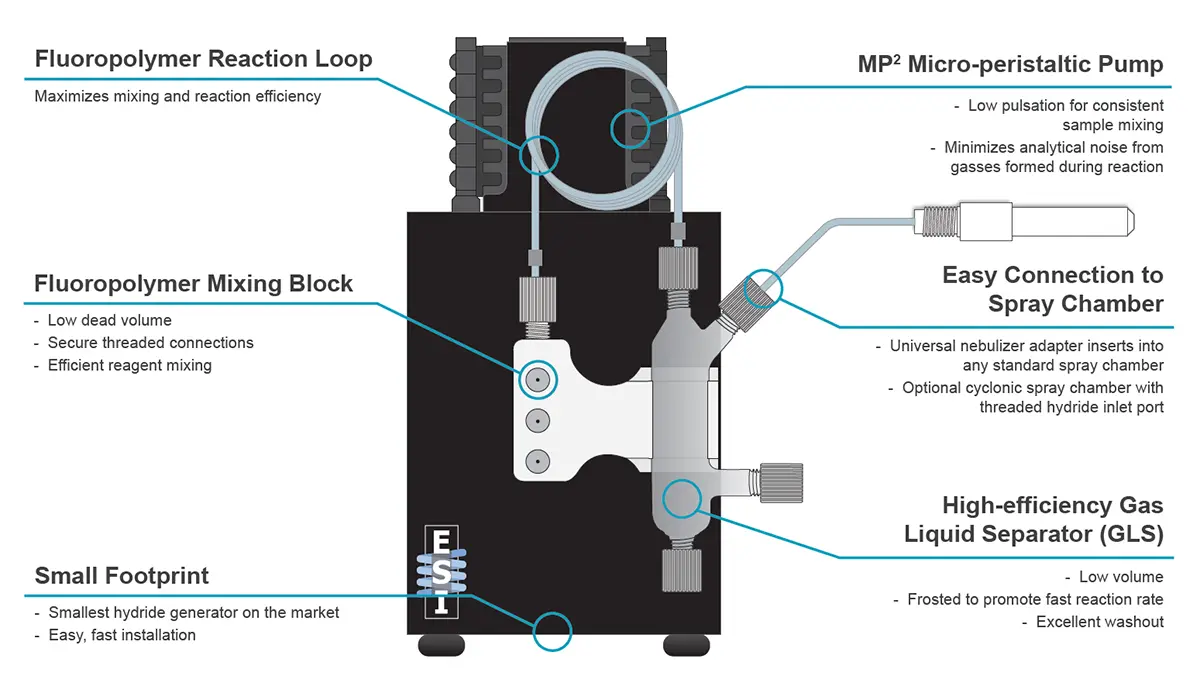

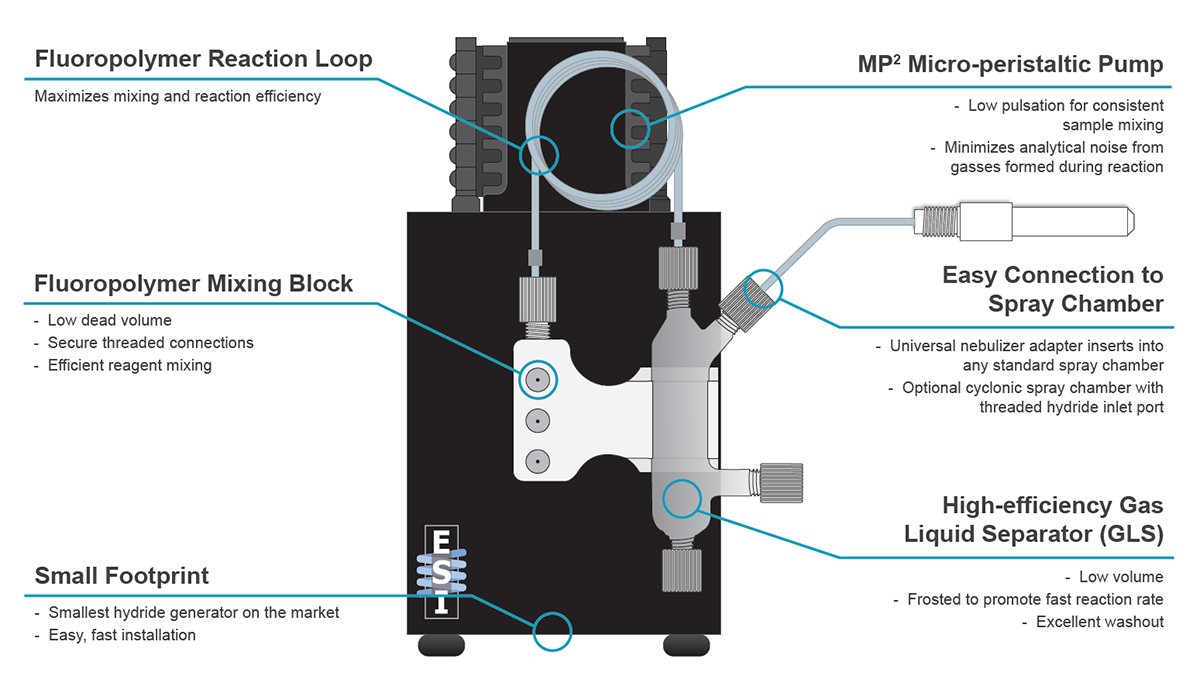

Features Diagram

Benefits

• High precision delivery of sample and reagents from MP² micro peristaltic pump
• Chemically resistant construction for enhanced lifetime with PFA mixing block and quartz gas liquid separator
• Convenient installation with hydride generation components mounted directly to MP² pump

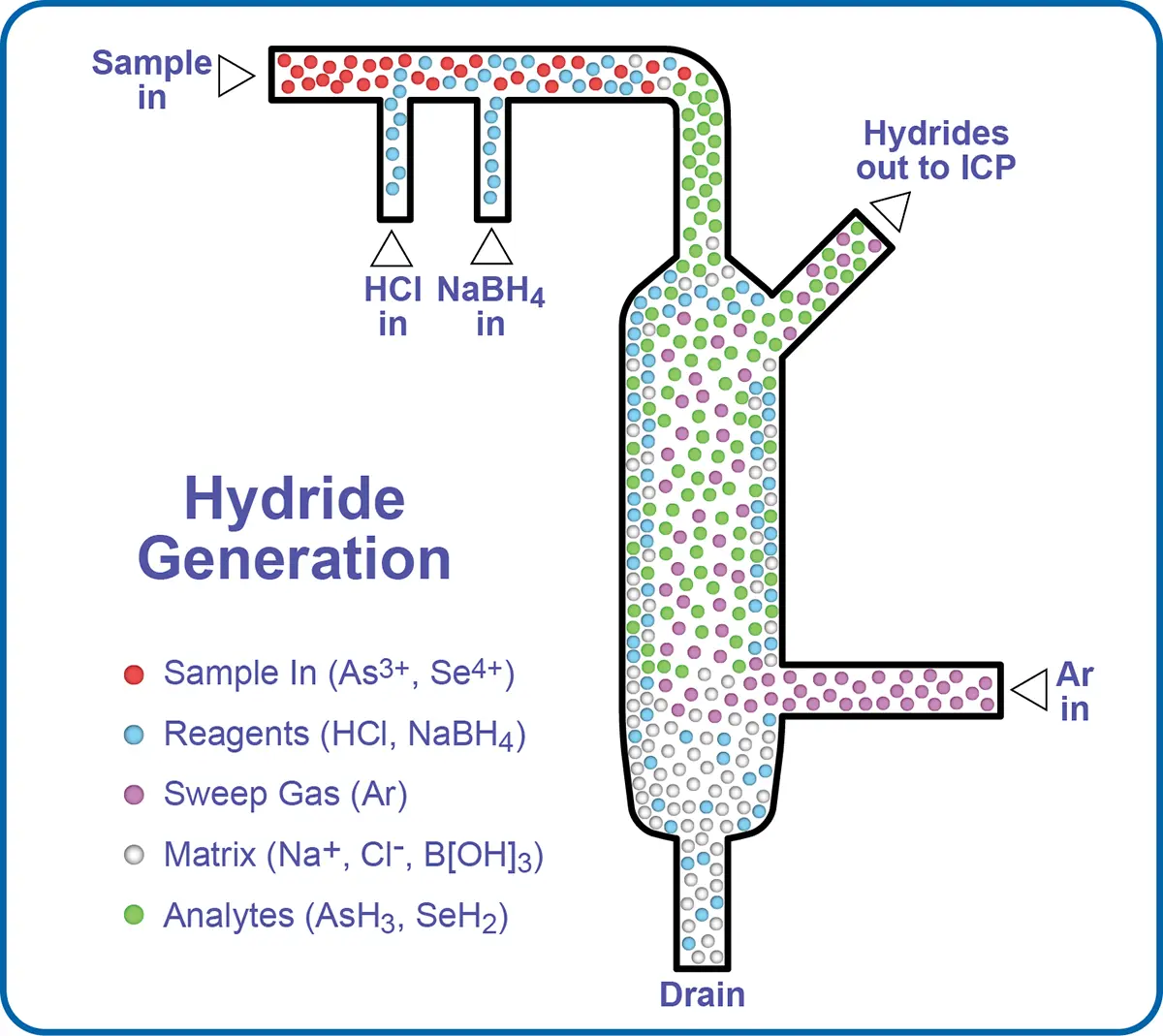

How It Works

• The patented design of the hydride ICP promotes rapid mixing of the sample and the reagents, resulting in a highly efficient hydride-forming reaction
• Separation of the hydride gases from the sample liquids in the small volume separator chamber

Hydride and Nebulization

• Simultaneous hydride and direct nebulization analysis with hydrideICP

Product Flyer & Diagram

hydrideICP Flyer Features Diagram
